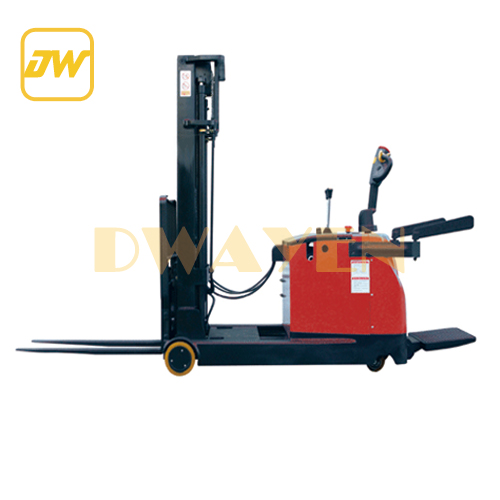

前移式电动堆高车1000/1500KG
  • 规格型号Model Number

    DW10E16

    DW15E16

    Maximum load capacity     (负载能力)

    kg

    1000

    1500

    with load center at       (载荷中心距)

    mm

    500

    500

    Maximum lifting height   (起升高度)

    mm

    1600

    1600

    Reach length             (前移距离)

    mm

    350

    470

    Tiltiing angle (up/down) (倾斜角度)

     3/5

     3/5

    Travel speed (without load)(无负载行驶速度)

    km/h

    5

    5

    Travel speed (with load)   (负载行驶速度)

    km/h

    4

    4

    Lifting speed (without load)(无负载起升速度)

    mm/h

    180

    180

    Lifting speed (with load) (负载起升速度)

    mm/h

    100

    100

    Ascend slope ability(withoutload ) (无负载最大爬坡能力)

    %

    8

    8

    Ascend slope ability (with load )   (负载最大爬坡能力)

    %

    5

    5

    Weight (without battery)   (不含电池重量)

    kg

    1240

    1880

    Overall length of frame(mast no reach)  (整车长度不含货叉)

    mm

    1500

    1700

    Overall length (mast no reach)   (整车长度含货叉)

    mm

    2020

    2220

    Overall length(mast reach(门架前移后整车长度)

    mm

    2370

    2690

    Overall width of frame (整车宽度)

    mm

    1000

    1035

    Mast lowered height   (门架降至最低高度)

    mm

    2200

    2200

    Max height(mast lifted with backrest)(门架起升至最高整车高度)

    mm

    2650

    2650

    Wheelbase             (轴距)

    mm

    1100

    1400

    Fork length (货叉长度)

    mm

    1070

    1070

    Fork spread width      (货叉外侧宽度)

    mm

    200-725

    200-725

    Fork width(货叉面宽度)

    mm

    Fork lowered height    (货叉降至最低高度)

    mm

    35

    40

    Minimum turning radius (without platform)  (不带踏板最小转弯半径)

    mm

    1350

    1640

    Minimum turning radius (with platform)     (带踏板最小转弯半径)

    mm

    1750

    2040

    Min intersecting aisle width         (最小转弯通道宽度理论值)

    mm

    2440

    2650

    Front wheel       (承载轮)

    mm

    180*55

    210*75

    Drive wheel         (驱动轮)

    mm

    230*75

    230*75

    Caster wheel    (平衡轮)

    mm

    130*55

    130*55

    Wheel material   (车轮类型)

    polyurethane(聚氨酯)

    Drive motor type   (驱动电机类型)

    AC series motor(交流电机)

    Rated output   (功率)

    kw

    1.5

    1.5

    Hoist motor type  (起升电机类型)

    DC series motor(直流电机)

    Rated output             (功率)

    kw

    2.2

    3

    Voltage                  (电压)

    V

    24

    24

    Capacity                 (容量)

    AH

    210/240/270

    Weight                   (重量)

    kg

    195/225/260
